E2M 1.5 Foreline / Rotary Vane Pump

E2M1.5 FORELINE/ROTARY VANE PUMP

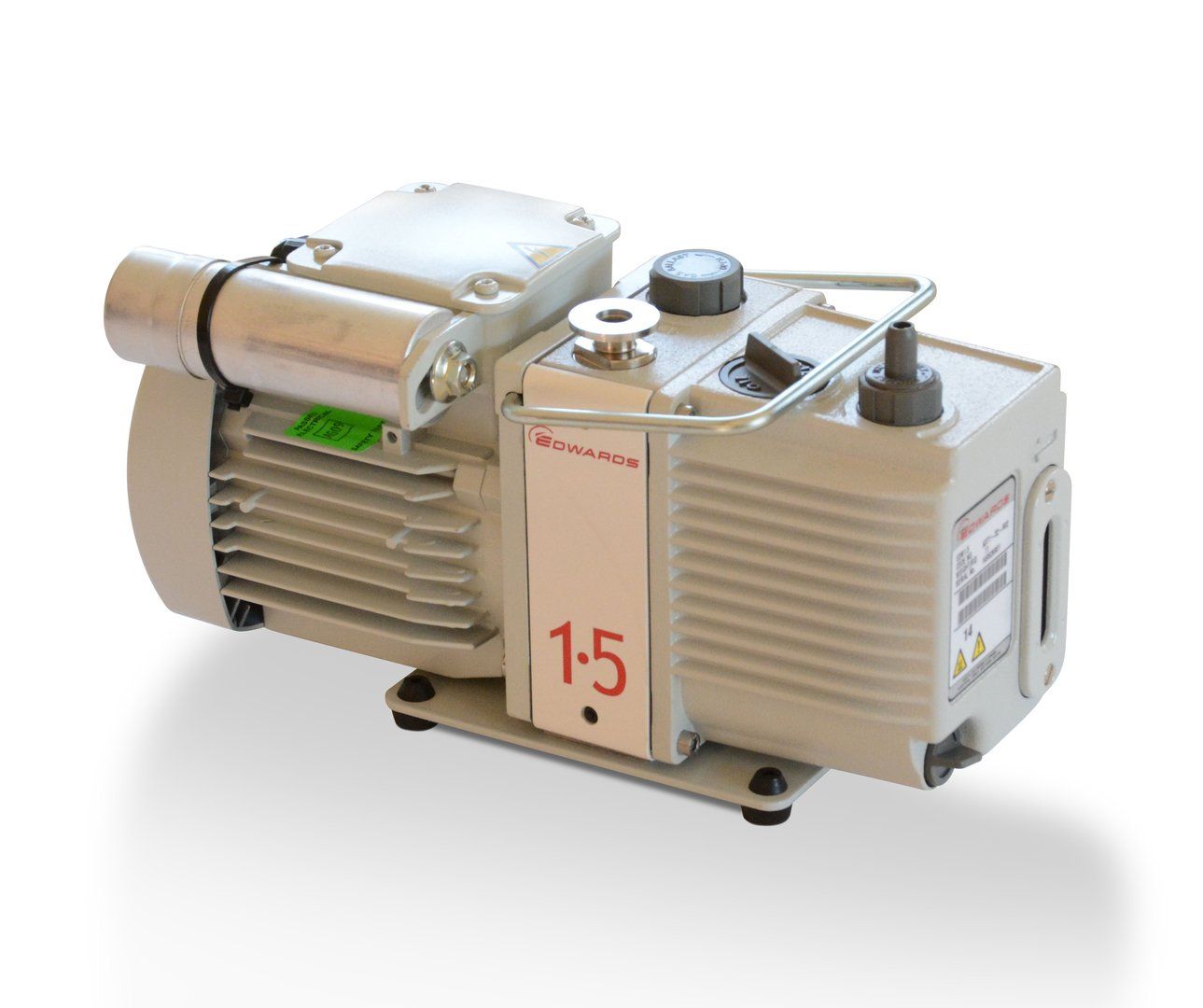

New Edwards E2M1.5 Foreline Pump

KF-16 Flange, 115V for North America

This is a new Edwards E2M1.5 Foreline Pump with a KF-10/NW-10 intake port.

This pump is a direct replacement for the original E2M1.5 Foreline Pumps shipped with 5973A/N GC/MSDs, and it can also be used to replace the small Pfeiffer foreline pumps that were shipped with the Agilent 5975 GC/MSDs. Both of these MSDs use a KF-16 fitting on the pump end of their vacuum hoses, and this can match the KF-16 intake port on this pump using an adaptive KF-10 to KF-16 o-ring.

Note:

- The recommended oil for this pump is Inland 45.

- This pump is rated for 115 VAC, and has a standard cord & plug that plugs into an AC socket. The List price includes GLTS supplying a pig-tail cord adapter to connect the standard plug into an IEC plug that will fit into the Foreline Pump socket on the back of your 5973/75 MSD.

- An adaptive o-ring is required when using this pump's KF-10 intake port with other KF-16 fittings.

- List price includes shipping to your site from the manufacturer (delivery from overseas in about 4 weeks). If sooner or overnight delivery is required from GLTS stock, then shipping costs are in addition to the List price.

A 1 year warranty is provided by Edwards Vacuum.

Please see our Information page for more important Tech Notes about Foreline Pumps.

For E2M1.5 compatible fittings, click here.
